Description

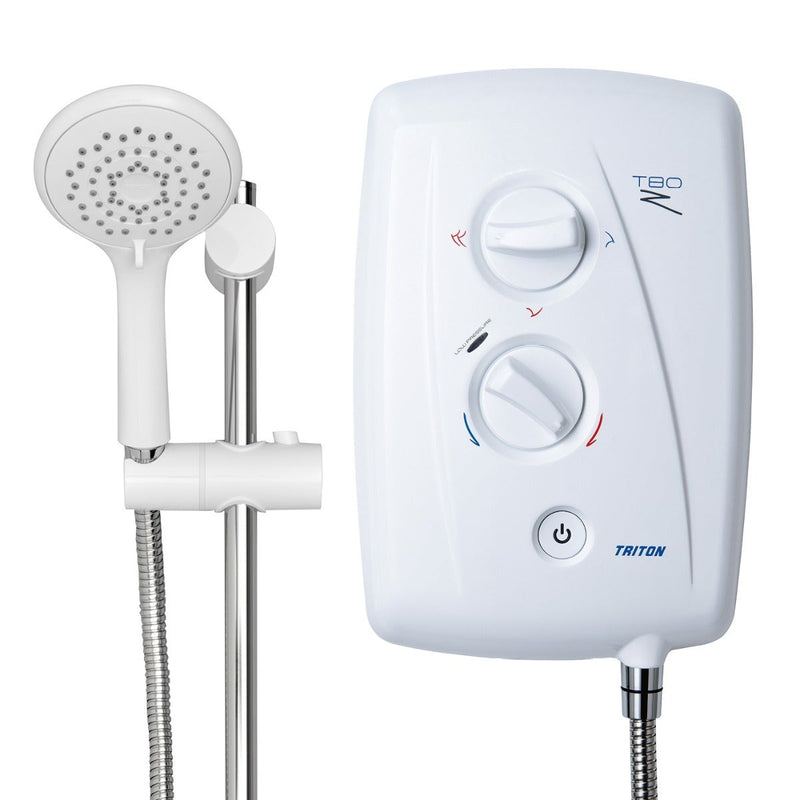

T80Z Fast-Fit is a great replacement shower. Multiple cable and water entry points located to the left and right side of the unit ensure easy fitting.
Dial power and temperature controls for ease of use. Supplied with an adjustable top bracket shower kit with a durable 1.25m anti-twist chrome shower hose. Swivel-fit connection allows for left and right-side water connection and swing-fit connectivity provides left and right-side cable connection with generous footprint for replacement installations. Plus Entry trims can easily be removed and fitted without tools.
- Suitable for Cold Mains Water Only
- Delivers 3.5Ltr/min at 1bar
- 2 Year Manufacturer's Guarantee (T&Cs Apply)
- Push-Button Start & Rotary Flow Control
- Rotary Temperature Control
- Riser Rail
- 5-Spray Pattern Shower Head
- Cold / Eco / High Dial Settings
Temperature Control and Flow Performance
Temperature ControlStabilised
Power Ratings7.5kW ; 8.5kW ; 9.5kW ; 10.5kW
Safety
Low Pressure Indicator - Yes
Controls
Start/Stop Button - Yes
Push Button Power Control - No
Temperature Control - Yes
Shower Fittings
Number of Showerhead Spray Patterns - 5
Shower Head Diameter - 110mm / 4 inches
Rub Clean Nozzles - Yes
Rail Diameter - 19mm / 0.75 inches
Rail Length - 530mm / 20.87inches
Distance Between Rail Brackets - Adjustable
Shower Head Holder Mechanism - Push Button Release
Soap Dish - Yes
Hose Length - 1.25m
Hose Retainer - Yes
Hose Material - Double interlocked stainless steel
Guarantee and Approvals
Guarantee - 2 years
Approvals - BEAB, CE, BSI Kitemark
Installation
Plumbing System - Cold Mains
Water Entry Points - Left Hand Side - Top, Bottom, Back : Right Hand Side - Top, Bottom, Back
Cable Entry Points - Left Hand Side - Top, Bottom, Back : Right Hand Side - Bottom, Back
Outlet Connection - 1/2" BSP
Minimum Running Pressure / Flow - 1 Bar @ 8 l/min : 1.5 Bar @ 11 l/min for 10.5kW
Maximum Static Pressure - 10 Bar
