Description

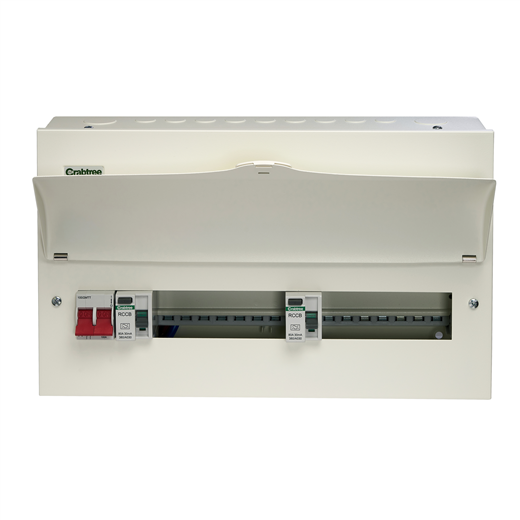

Crabtree Starbreaker 20 Module 14 way Part populated Dual RCD Consumer unit - 514/2837837B
7+7 configuration.
Complies with the BSEN61439-3 Regulations
Supplied complete with 2 x 80A 30mA type A RCD's and 1 x 100A Main Switch, fixed busbar system and circuit labels. Capable of taking 14 circuits, 7 on each RCD.
- Metal enclosure, no external plastic parts
- Low Smoke & Fume paint
- Top hinged self closing, stay shut door and metal hinges
- Cable entry knockouts on all sides and large square knockouts on the rear
- Non combustible cover blanks
- Plug in MCB & RCBO 25% fewer screw terminals to make - significantly reducing risk of loose connections
- Add or upgrade circuits without removing busbar - no need to disturb adjacent devices - reducing risk of installation errors
- UKAS certified to BS EN 61439-3
- Finger safe, insulated busbar assembly - provides greater personal protection
- Permanent factory fitted, non removable busbar shield - can't be lost or left out
- Plug in MCB and RCBOs for instant guaranteed connections
- Extra height for added wiring space with single module RCBOs
- DIN control devices can be fitted in any position along the DIN rail - without affecting any other devices or busbar connections
- High capacity neutral & earth terminals
- Factory fitted incoming devices for reduced installation time
Dimensions are (HxWxD) - 261 x 438 x 121
