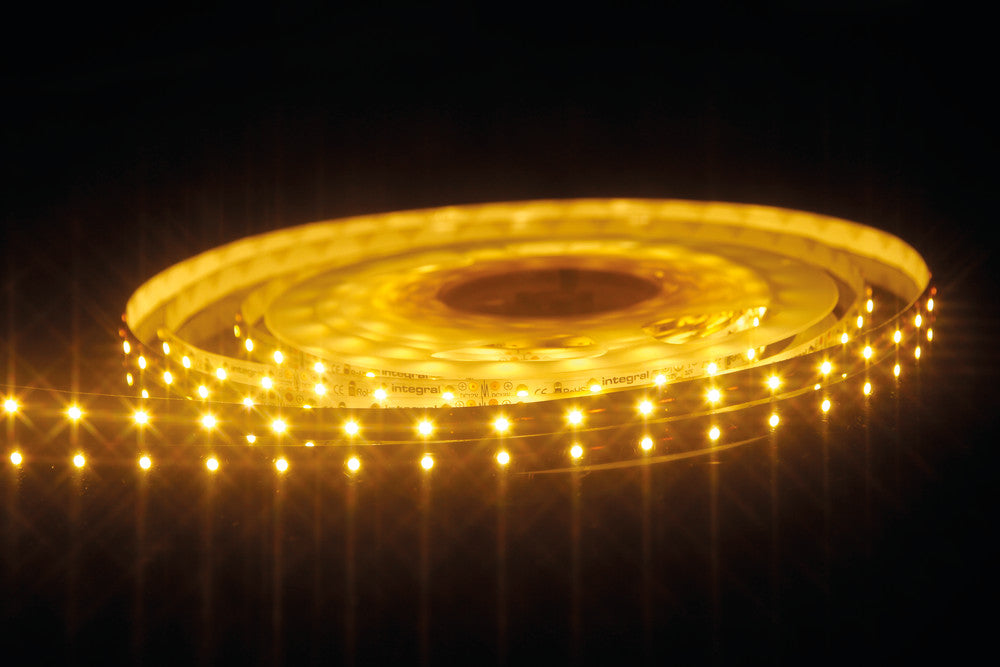

Integral LED STRIP IP20 5M 3000K 24V 10.5W/M 1000LM/M 60LED/M 10MM WIDTH 115 BEAM CRI90 BAG PACK ILSTWHIA044E
Description
This Warm White LED strip has 60pcs of SMD 28:35 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guides. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Warm white
- 24V DC Constant Voltage
- 10.5W per metre
- 60 LEDs per metre
Physical Data
| Strip Cut Points | 100 |
|---|---|
| Product Weight (g) | 93 |
| Material | PCB |
| Max Run Length (m) | 10 |
| Max Strip Width (mm) | 10 |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
| Length (m) | 5 |
Light Data
| Luminous efficacy (lm/W) | 95 |
|---|---|
| Lumens per meter (lm/m) | 1000 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 30000 |
