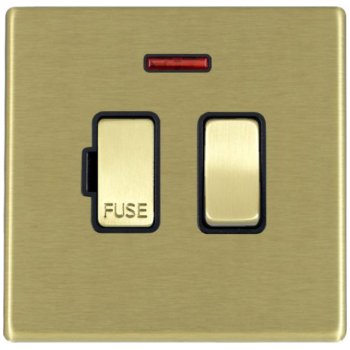

Hamilton Hartland G2 Satin Brass 13A Double Pole Switched Fused Spur and Neon with Satin Brass Insert and Black Surround 7G22SPNSB-B

Hamilton Hartland G2 Satin Brass 13A Double Pole Switched Fused Spur and Neon with Satin Brass Insert and Black Surround 7G22SPNSB-B

The Hamilton Hartland G2 range is an affordable collection of screwless switches and sockets featuring sleek round edges and push-to-fit face plates in six stylish finishes. All Hartland G2 wiring accessories are also covered by a 25 year guarantee for added peace of mind.

• Product range: Hartland G2
• Complete with high-quality gasket as standard
• Screwless push-to-fit front plate, designed with Hamilton's patented easy clip system
• Plate finish: Satin Brass
• Plate material: Metal
• Insert: Satin Brass Insert
• Surround: Black Surround
• Double pole switched fused spur with neon
• Gangs: 1
• Current rating: 13 A
• Voltage: 220/250 V AC
• Mains frequency: 50 Hz
• Maximum load: 13 Amps
• Switched poles: Double
• Plate size: Single
• Plate width: 87.5 mm
• Plate height: 87.5 mm
• Plate depth: 4.65 mm
• Minimum wall box depth: 35 mm
• Contact gap minimum: 3 mm
• CE marked
• IP rating: IP2XD
• Ambient operating temperature: -5 to +40 °C
• Internal Use Only
• Maximum installation altitude: 2,000 m
• Guarantee: 25 years
• Must be earthed
• Terminal capacity:
  • 3 x 2.5 mm²
  • 2 x 4 mm² Multi-strand
  • 1 x 6 mm²
• Earth terminal capacity:
  • 6 x 1 mm²
  • 5 x 1.5 mm²
  • 3 x 2.5 mm²
  • 2 x 4 mm² Multi-strand
  • 1 x 6 mm²
• BS EN ISO standard(s): BS 1363-4
