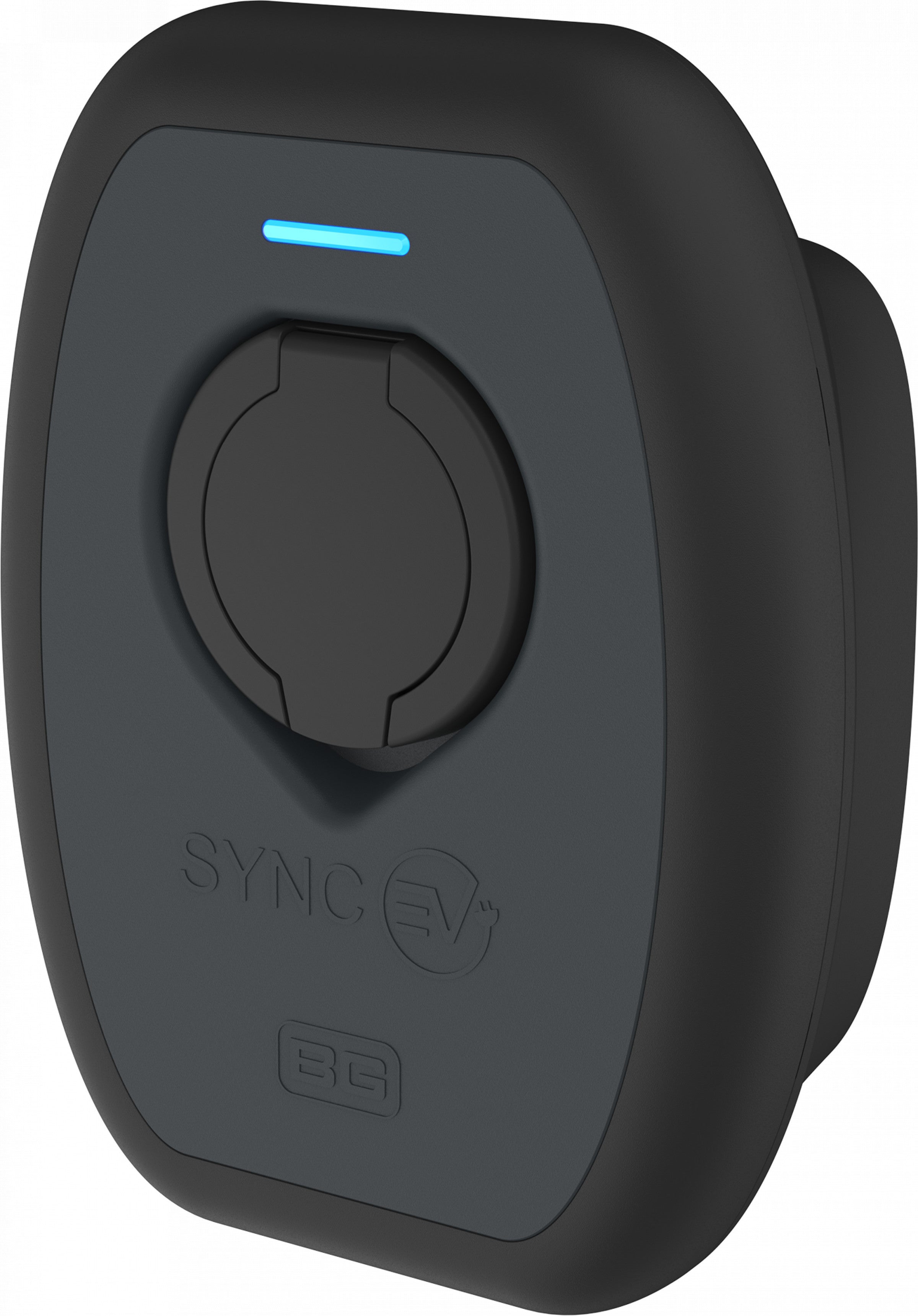

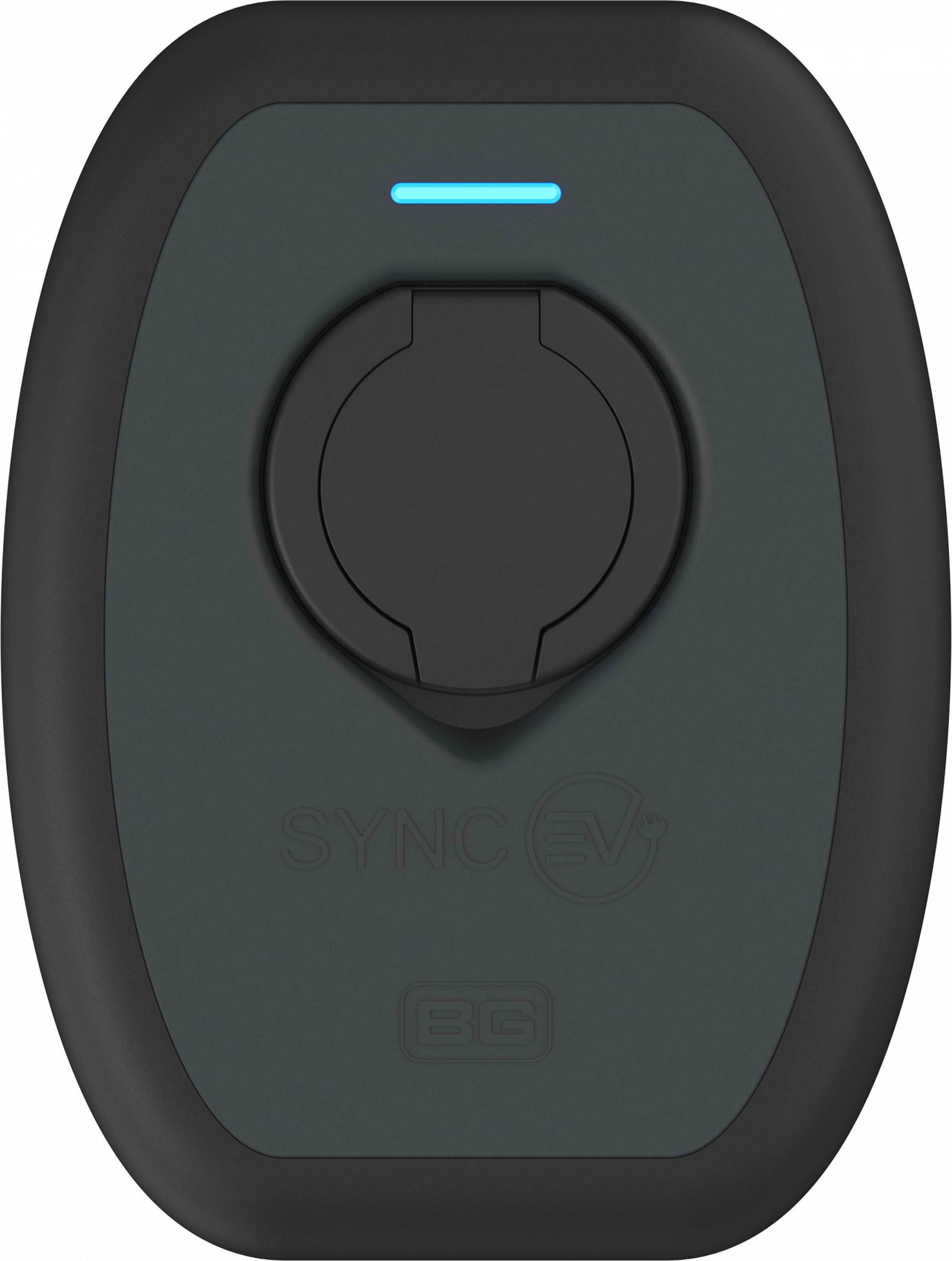

SyncEV BG socketed 7.4kW wall charger with WiFi and Smart functionality - EVS7G
Description
SyncEV BG 7.4kW socket (with auto-lock) wall charger with WiFi and Smart! functionality. Offering installers quick and easy installation, with UK based technical support and backed by a 3 year warranty. Dekra certified.
Features
- Wifi connectivity - free lifetime software updates over-the-air
- Full Smart! functionality - OCPP 1.6J connectivity
- Dynamic charging - up to 7.4 kW
- No earth rod required - integrated open PEN conductor protection
- Safe - integrated earth fault protection (RCD) + PEN protection system

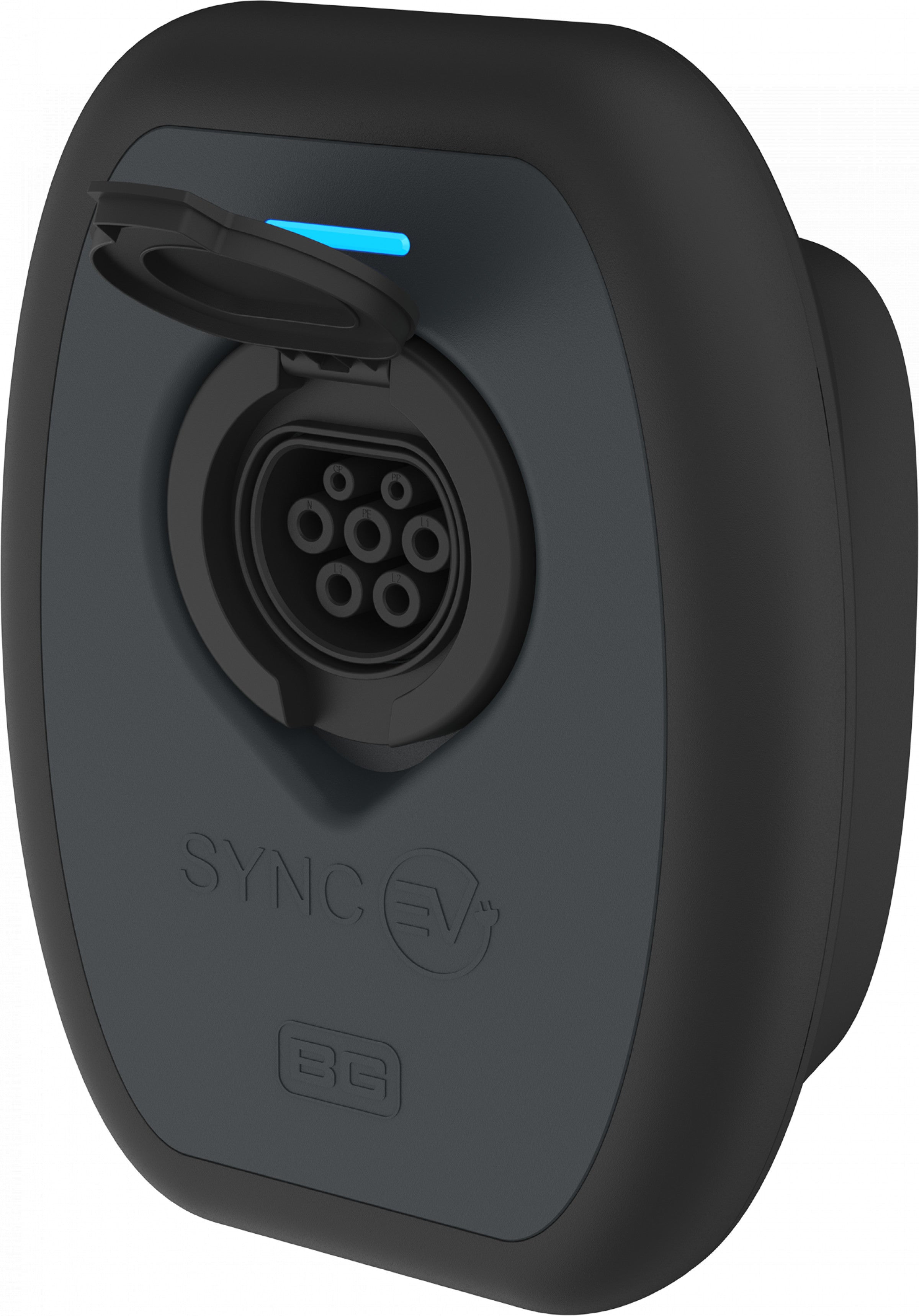

- Type 2 socket with auto-lock

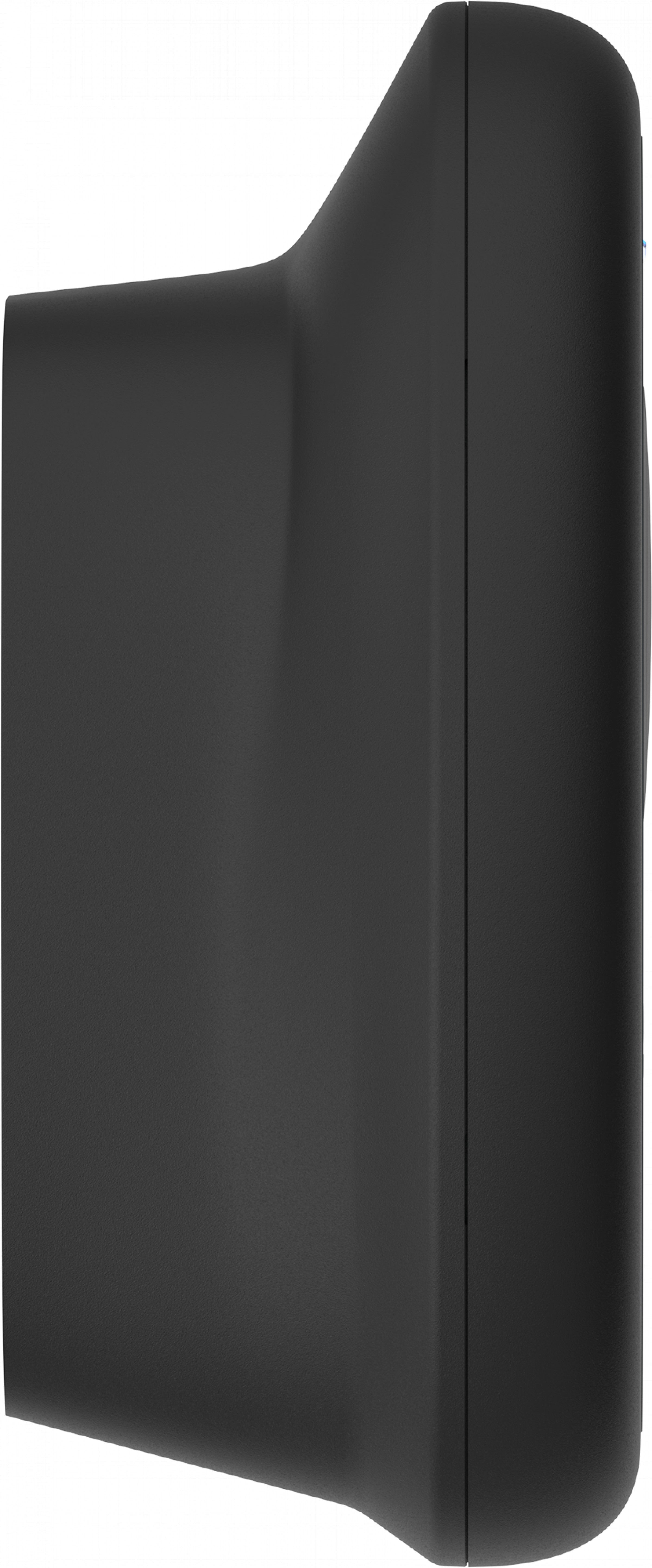

Dimensions : 297 (H) X 223 (W) X 121 (D) MM
Specification
| CODE : | EVS7G |
| TYPE : | Socket - Type 2 with auto-lock |
| COMMUNICATION : | Wi-Fi |
| DIMENSIONS : | 297 (H) X 223 (W) X 121 (D) MM |
| KW : | 7.4KW 32A MODE 3 |
| MIN CHARGE CURRENT : | CONFIGURABLE, 6 - 32A |
| ELECTRICAL INPUT : | 220-240V, 50-60Hz, SINGLE PHASE |
| COLOUR : | BASE & TRIM - RAL 9005 (BLACK) BODY - RAL 7016 (GRAPHITE GREY) |
| CABLE MANAGEMENT : | BUILT IN CABLE WRAP |
| PEN PROTECTION : | YES, IN-BUILT EARTH DISCONNECTION |
| EARTH ROD : | NOT REQUIRED |
| RCD PROTECTION : | YES, 6mA DC, 30mA TYPE-A, IN-BUILT |
| OVERLOAD AND FAULT PROTECTION : | OVER CURRENT AND FAULT PROTECTION |
| ELECTRICAL CLASS : | CLASS 1, HOUSING CLASS 2 |
| LOAD BALANCING : | YES, OPTIONAL ACCESSORY |
| CONSUMER UNIT REQUIREMENTS : | 40A MCB OR 30mA TYPE-A RCD (Dependent on cable type &/or route) |
| TERMINALS : | FIRST FIX PLUG CONNECTOR |
| INDICATOR : | RGB LED AND BUZZER |
| INDICATOR MODES : | BLUE - STANDBY, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR |
| HOUSING : | UV STABILISED POLYCARBONATE |

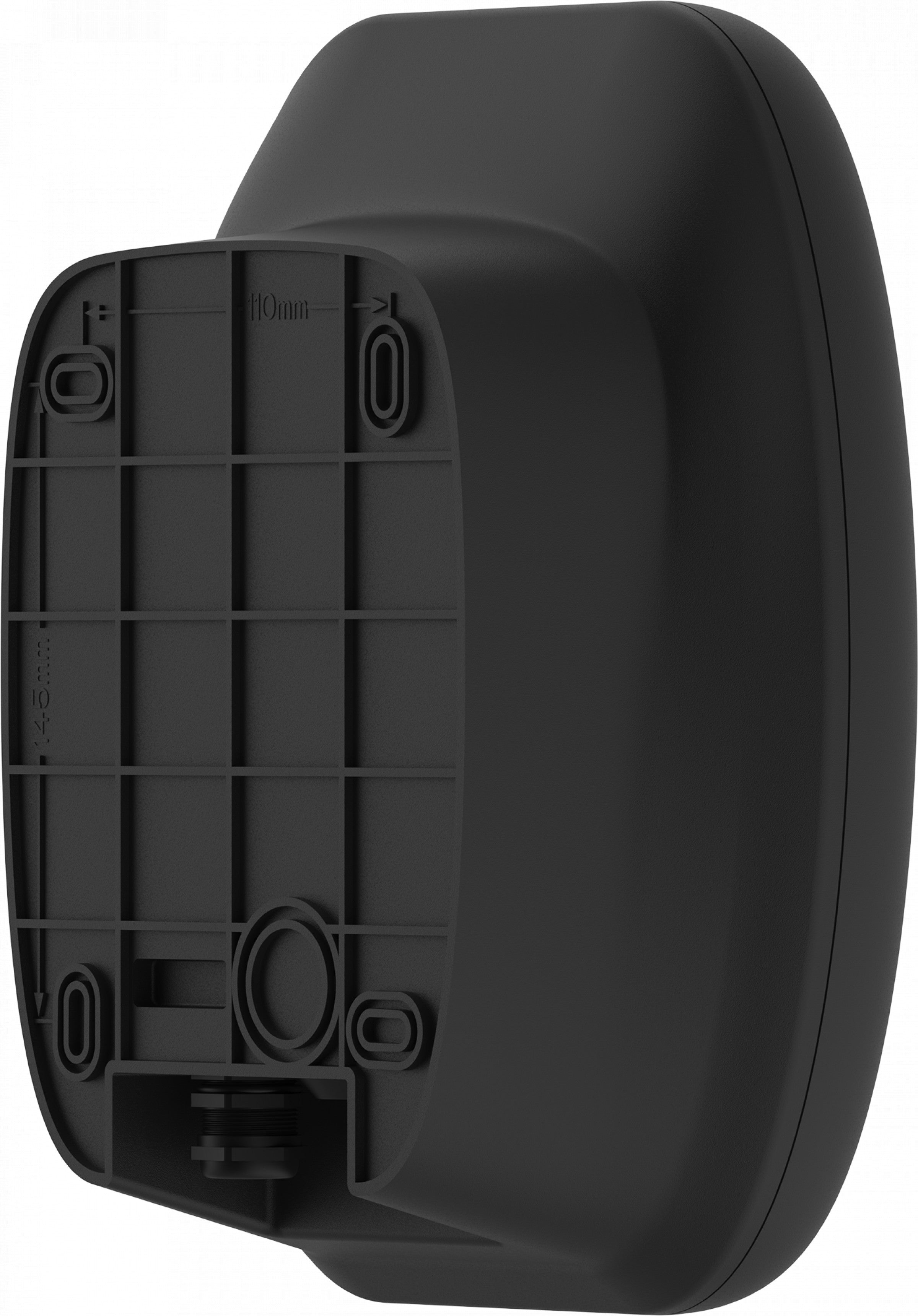

| WALL FIXING : | 4 point with horizontal and vertical adjustment, supplied fixing hole template |
| IP RATING : | IP55 |
| IK RATING : | IK10 |
| SOC MODULE : | AI ESP32-S SOC |
| ETHERNET : | RJ45 |
| WI-FI : | 2.4Ghz 802.11 b/g/n/e/i |
| BLUETOOTH : | YES |
| CONNECTION PROTOCOL: | OCPP 1.6J |
| APP AND BACK OFFICE : | SYNC EV |
| OPERATING TEMP : | -25 TO +40°C |
| SOFTWARE & FIRMWARE UPGRADE : | OVER-THE-AIR |
| WARRANTY : | 3 YEARS* |
| STANDARDS & APPROVALS : | IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, DEKRA CERTIFIED |
| SUPPLIED ACCESSORIES : | 5x base fixing caps, 5x assembly lid bolts, 1x blanking plug and 1x 25mm compression gland, user-side connector, cord grip and 2x cord grip assembly screws |
| ADDITIONAL : | BUILT-IN SPIRIT LEVEL |
Warranty
Your 3-year homeowner warranty*
We believe that our customers deserve total peace of mind when purchasing a SyncEV BG charger. Confident with our workmanship and state of the art technology we offer a comprehensive 3 year warranty for homeowners when the product is installed by a recommended and approved SyncEV BG installer.
What does my warranty cover?
A SyncEV BG guarantee covers the repair or replacement (at our discretion) of your chargepoint if it is found to be defective due to faulty materials or workmanship within the 3-year guarantee period. By law, this warranty must be registered from June 2022 to ensure compliance with UK Government regulations regarding EV Smart Chargers.
*If installed by a non-recommended installer we offer a 1-year parts only warranty unless the product is registered on our website for an extended 3 year parts only warranty. The product must be registered within 48hrs of installation to qualify.
