Timeguard 5400130 DIMAX 540 plus B LED Mini Dimmer
Regular price
£25.50
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
By Timeguard
SKU: 5400130
Description
Timeguard Theben 5400130 DIMAX 540 plus B LED Mini Dimmer
The smallest 230V UP dimmer in the world! Just wire it to a retractive switch.
See the product install video by eFIXX here
- Small design, perfect for retro-fitting behind a standard push button
- No neutral conductor necessary
- Optimised settings for LEDs and incandescent lamps prevents flickering
- Switch and dim from multiple locations
- Flush-mounted dimmer for R and C loads
- Completely encapsulated electronics
- Temperature and overcurrent cut-off
- Memory function saves the most recently set light level value
- Adjustable minimum brightness feature (10% in state of delivery)
- THIS PRODUCT ONLY WORKS WITH TRAILING EDGE LED PRODUCTS
Specification
| Operating Voltage | 230V AC |
| Frequency | 50-60Hz |
| Installation Type | Flush Mount |
| Operating Temperature | -10°C to + 45°C |
| Standby Consumption | ~0.34 W |
| Switch Rating | LED lamps (2-8w) 150W, Incandescent/halogen lamps 150W |
| Weight (g) | 12g |

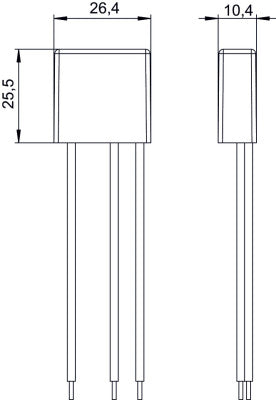

| Dimensions | Height 25.5mm, Width 26.4mm, Depth 10.4mm |
| Body Construction | Polycarbonate |
| Product Colour | Yellow |
Timeguard Theben 5400130 DIMAX 540 plus B LED Mini Dimmer
The smallest 230V UP dimmer in the world! Just wire it to a retractive switch.
See the product install video by eFIXX here
- Small design, perfect for retro-fitting behind a standard push button
- No neutral conductor necessary
- Optimised settings for LEDs and incandescent lamps prevents flickering
- Switch and dim from multiple locations
- Flush-mounted dimmer for R and C loads
- Completely encapsulated electronics
- Temperature and overcurrent cut-off
- Memory function saves the most recently set light level value
- Adjustable minimum brightness feature (10% in state of delivery)
- THIS PRODUCT ONLY WORKS WITH TRAILING EDGE LED PRODUCTS
Specification
| Operating Voltage | 230V AC |
| Frequency | 50-60Hz |
| Installation Type | Flush Mount |
| Operating Temperature | -10°C to + 45°C |
| Standby Consumption | ~0.34 W |
| Switch Rating | LED lamps (2-8w) 150W, Incandescent/halogen lamps 150W |
| Weight (g) | 12g |
| Dimensions | Height 25.5mm, Width 26.4mm, Depth 10.4mm |
| Body Construction | Polycarbonate |
| Product Colour | Yellow |
